Hydrogas Domestic Hot Water (DHW)Tanks

TCE HYDROGAZ®

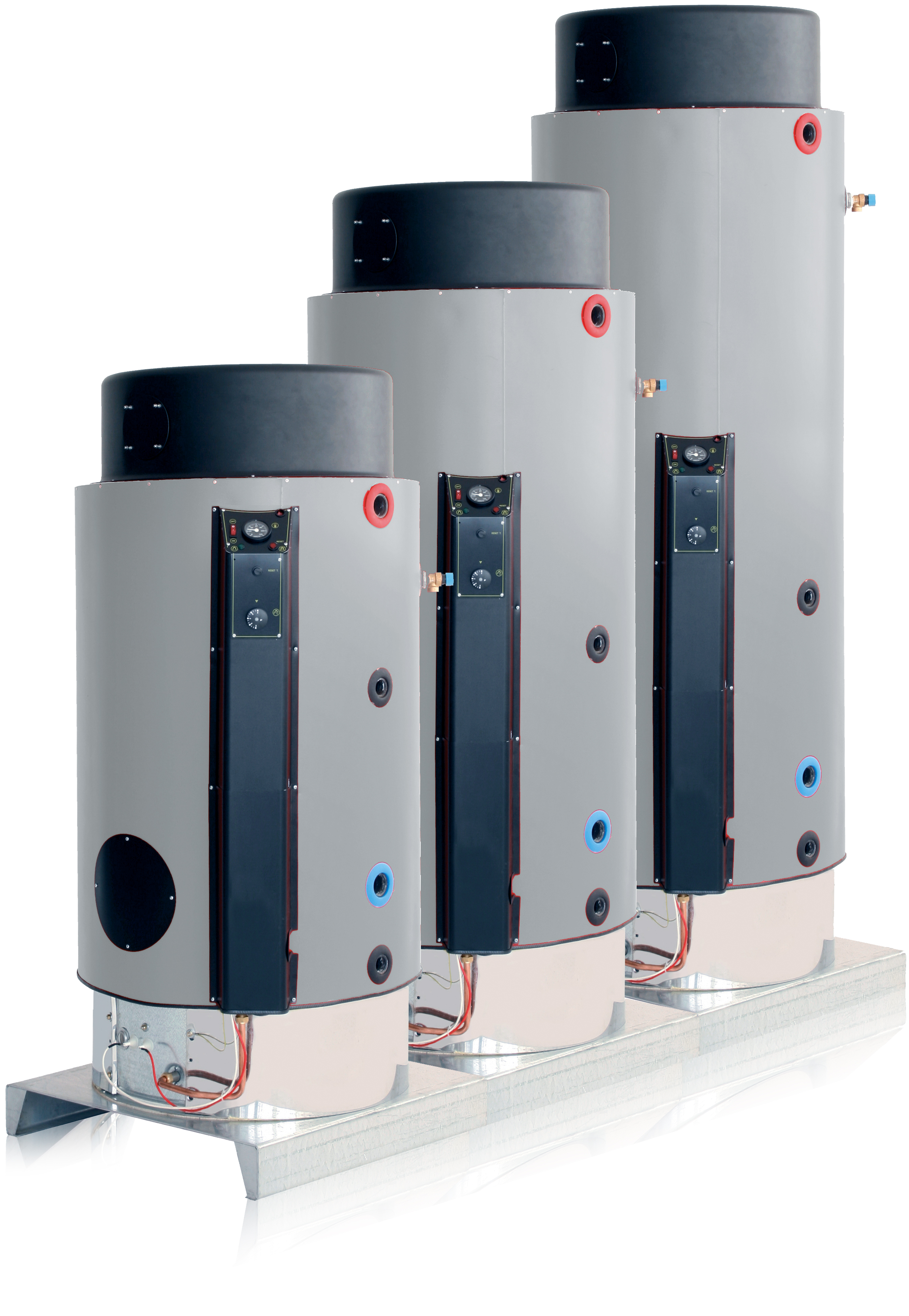

GAS-FIRED HOT WATER HEATER "TCE" RANGE.

220 à 400 Litres

CE compliance
51C04350/ED14

Gas equipment and gas chamber

High efficiency

Inspection and cleaning tapping

TCE Hydrogaz is a semi instantaneous hot water production.

AdvantagesTechnical descriptionDocumentaries

Advantages

Technical description

  • Tank
    • Cylindrical in first class stainless steel.
    • Upright on a base made of galvanised steel.
    • Capacity from 220 to 400L.
    • Maximum working pressure = 6 bar – Test pressure = 9 bar.
    • Inspection and cleaning tapping.
    • External anti-rust paint.
    • Threaded tappings in accordance with the attached diagram.
  • Internal coating
    • Glass-lined steel, baked at 850°C.
    • Magnesium protection anode.
  • Thermal insulation attached for a material located in a building :
    • Injected polyurethane foam – 60 mm thick
    (λ = 0,024 W/m/K – 35 kg/m3 environ).
    • Sheet metal jacket in coated steel.
  • GAS EQUIPMENT (efficiency > 94% on NCV)
    • All gas atmospheric burner.
    • Electric control and safety box.
    • Gas valve (CE according to combustion).
    • Differential pressure switch (controls gas fumes release).
    • Regulation thermostat (+40 / +80°C).
    • Safety thermostat (limiter at 90°C).
    • Moveable evacuation/intake turret with ventilator.
  • Control panel (single phase 230 V / 67W)
    • On/off switch.
    • Button for controlling the temperature set point.
    • Push button for resetting the safety thermostat.
    • Thermometer.
    • Operation indicator.
    • Push button with LED (re-setting the burner + fault).
  • Accessories
    • DN15 safety valve.
  • Add-ons
    (choose one of the suggested solutions, see next page):
    • Coaxial wall outlet: coaxial tube ø 100 mm, L = 1 m
    (L max. = 3 m, at least 1 m per 90° elbow).
    • Coaxial ceiling outlet: 90° elbow + coaxial tube ø 100 mm,
    H = 1 m (H max. = 2 m with the elbow, at least 1 m per 90° elbow).
    • Air/gas fumes separation: separation box + 2 single tubes
    ø 80 mm, L = 1 m (L max. = 6 m, at least 1 m per 90° elbow).
  • Option
    • Additional boiler fitting elements.
  • Warranties (in accordance with our general conditions of sale)
