COMPACT SOLAR STATION DN20 WITHOUT CONTROLLER

WITHOUT CONTROLLER

Solar domestic hot water

High efficiency circulator pump

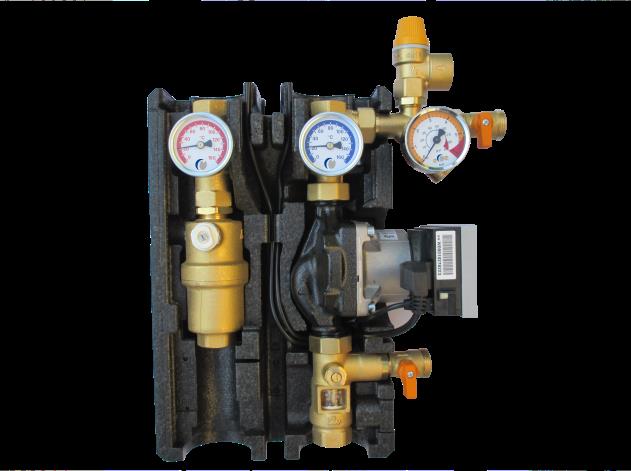

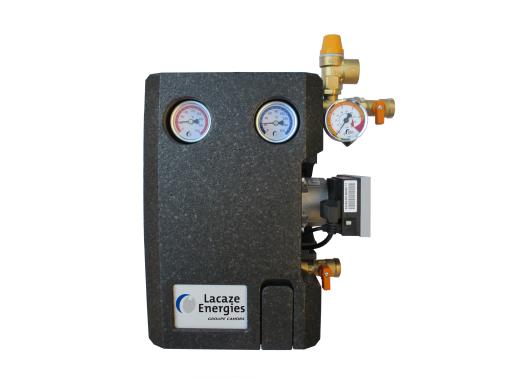

The compact solar station DN20 ensures the efficient circulation of the solar fluid in the solar loop. It contains all the components necessary for the proper functioning of the primary solar system.
It is entirely pre-mounted in order to facilitate the commissioning. It is designed for wall mounting. It is equipped with a high efficiency solar circulator pump which provides a high manometric head.
This station is adapted for up to 30m²aperture of flat-plate collectors SUN 300 and up to 18m²absorber of vacuum tube collectors SUN 400.





Technical descriptionDocumentaries

Technical description

  • 2 ball valves (flow-return) with anti-thermosiphon check valve 200mmCE (can be opened) and removable metal thermometer 0-160°C
  • Permanent air bleeder with manual air vent valve
  • Expanded PolyPropylene insulation
  • Safety group:

– Solar safety valve 6 bar – 3/4” int

– Solar fill valve

– Pressure gauge 0-6 bar

– Expansion vessel connection 3/4″ ext with flat seal

  • Simple high efficiency solar circulator pump WILO YONOS PARA ST 15/13 PWM
  • Direct readable flowmeter 3-22l/min with ball valve for flow balancing



Available model:
